Mainz COLOVIEW® System內視鏡

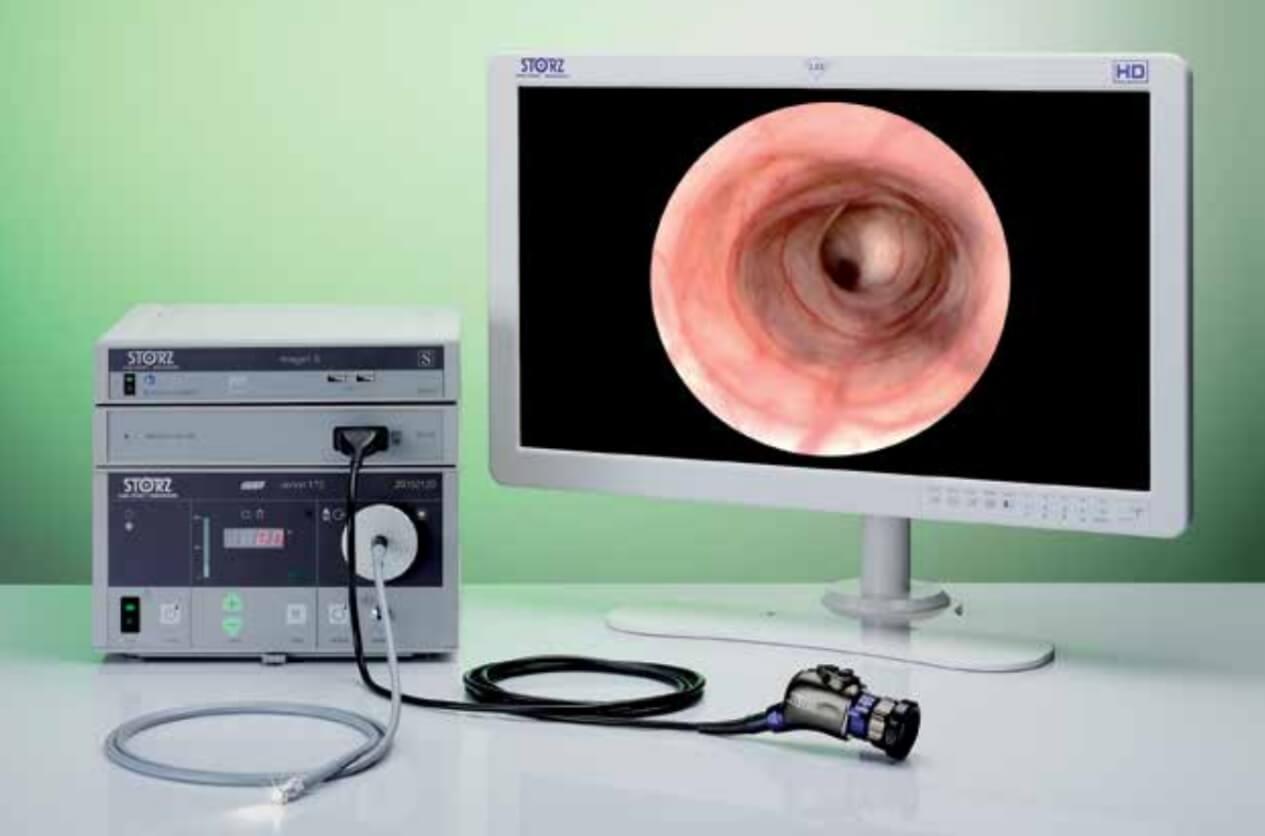

Mainz COLOVIEW® System



COLOVIEW® Basic

64301 AA HOPKINS® Straight Forward Telescope 0°, diameter 1.9 mm, length 10 cm, autoclavable, fiber optic light transmission incorporated,color code: green

61029 C Protection and Examination Sheath,7 Fr., working length 8.5 cm, with Obturator 61029 CO and 2 LUER-Lock cones, color code: blue

20132101-1 Cold Light Fountain XENON 175 SCB, power supply 100-125/220-240 VAC, 50/60 Hz

including:

Mains Cord

SCB Connecting Cable, length 100 cm

495 NT Fiber Optic Light Cable, with straight connector, diameter 2.5 mm, length 180 cm

20 2210 30 TRICAM® Three-Chip Camera Head, color system PAL, soakable, gas-sterilizable, integrated Parfocal Zoom Lens, f = 25 – 50 mm (2x), 2 freely programmable camera head buttons

20 223011U1 TRICAM® SL II Camera Control Unit SCB, color systems PAL/NTSC, with KARL STORZ-SCB and integrated digital Image Processing Module, power supply 100-240 VAC, 50/60 Hz

including:

Mains Cord

Keyboard, with US English character set

2x Connecting Cable, for controlling

peripheral units

BNC Video Cable

S-Video (Y/C) Connecting Cable

Special RGBS Connecting Cable

SCB Connecting Cable

9619 NB 19" HD Monitor, color systems PAL/NTSC, screen resolution 1280 x 1024,power supply 100-240 VAC, 50/60 Hz Video inputs: DVI, VGA, S-Video,

Composite

Video outputs: DVI, S-Video, Composite

9626 SF Monitor Stand, with integrated cable channel, for use with: – 9619 NB 19" HD Monitor

COLOVIEW® Pro

64301 AA HOPKINS® Straight Forward Telescope 0°, diameter 1.9 mm, length 10 cm, autoclavable, fiber optic light transmission incorporated, color code: green

61029 C Protection and Examination Sheath, 7 Fr., working length 8.5 cm, with Obturator 61029 CO and 2 LUER-Lock cones, color code: blue

61029 D Examination Sheath, 9 Fr., working length 7 cm, with Obturator 61029 DO and working channel 3 Fr., color code: red

61071 ZJ Biopsy Forceps, double action jaws, flexible, 3 Fr., length 28 cm

20132101-1 Cold Light Fountain XENON 175 SCB, power supply 100-125/220-240 VAC, 50/60 Hz

including:

Mains Cord

SCB Connecting Cable, length 100 cm

495 NT Fiber Optic Light Cable, with straight connector, diameter 2.5 mm, length 180 cm

TH 100 IMAGE1 S H3-Z Three-Chip FULL HD Camera Head, S-Technologies available, max. resolution 1920 x 1080 pixels, progressive scan, soakable, gas-and plasma-sterilizable, with integrated Parfocal Zoom Lens, focal length f = 15-31 mm (2x), 2 freely programmable camera head buttons, for use with IMAGE1 S and IMAGE 1 HUBTM HD/HD

TC 200EN IMAGE1 S CONNECT, connect module, for use with up to 3 link modules, resolution 1920 x 1080 pixels, with integrated KARL STORZ-SCB and digital Image Processing Module, power supply 100-120 VAC/200-240 VAC, 50/60 Hz

TC 300 IMAGE1 S H3-LINK, link module, for use with IMAGE1 FULL HD three-chip camera heads, power supply 100-120 VAC/200-240 VAC, 50/60 Hz, for use with IMAGE1 S CONNECT TC 200EN

9826 NB 26" FULL HD Monitor, wall-mounted with VESA 100 adaption, color systems PAL/NTSC, max. screen resolution

1920 x 1080, image format 16:9, Video inputs: DVI, 3G-SDI, VGA, S-Video,

Composite,

Video outputs: DVI, 3G-SDI, Composite, power supply 100-240 VAC, 50/60 Hz, 5 V DC output (1 A)

9826 SF Monitor Stand, suitable for 26" and other monitors, basic monitor stand, tiltable, rotation +/-30, disinfectable, color white, e.g. for use with 26" FULL HD Monitor 9826 NB or 26" 3D Monitor 9826 NB-3D

VITOM® 25


60916020 VITOM® 25 HOPKINS® Straight Forward Telescope 0°, working distance 25-75 cm, diameter 10 mm, length 11 cm, autoclavable, fiber optic light transmission incorporated, color code: green

28272 RGC Holding System, autoclavable, with quick release coupling KSLOCK

including:

Rotation Socket, to clamp to the OR table, for European and US standard rails, with lateral clamp for height and angle adjustment of the articulated stand

Articulated Stand, reinforced version, L-shaped, especially large swivel range, with one mechanical central clamp for all five joint functions, height 48 cm, swivel range 66 cm, with quick release coupling KSLOCK (female)

Clamping Jaw, metal, for use with all square-headed KARL STORZ HOPKINS® telescopes, clamping range 16.5 up to 23 mm, with quick release coupling KSLOCK (male)
